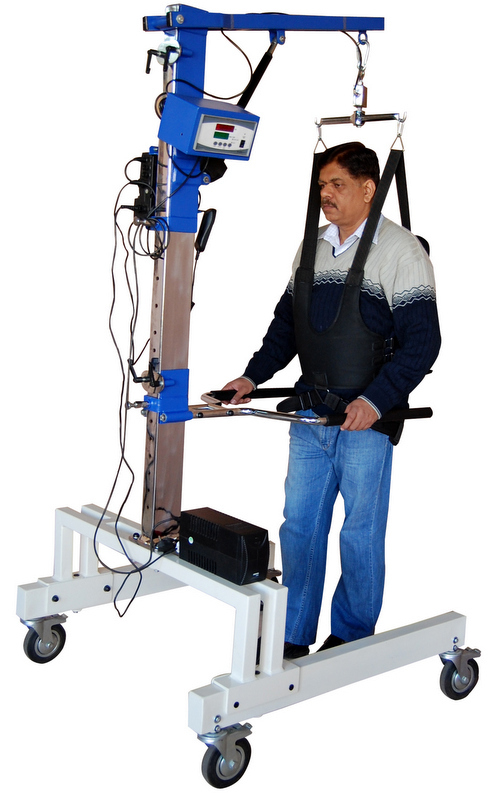

IMI-3204 UN-WEIGH MOBILITY TRAINER (Un-Weighing System, W/o. Treadmill):The IMI Un-Weighing Mobility Trainer enables partial weight-bearing therapy to be conducted with the assurance of patient Comfort and Safety, and with convenient access to the patient for manual observation and assistance. The electrical un-weighing trainer is designed to apply vertical support to remove the stress of bearing body weight; unit digitally controls weight-bearing and promotes proper posture and balance over a treadmill or the ground. The system allows the patient to stand upright and use both arms freely. Harnesses give security to patients with limited trunk strength.
The adjust-table suspension bar adjusts to accommodate tall Children & Adults.
SPECIFICATIONS:
- Un-weighing : Can be set 0% to 100% of the body weight, digitally.
- Un-weighing System : Electrical, the unit comes with mains operated built-in lift system.
- Vertical Oscillation: Up to 24", ideal for sit to stand exercises also.
- Suspension: Single point, with the 360-degree rotational bar to help patient turn easily.
- Control Panel: Digitally display
- Patient weight, & Un-weighing Weight.
- Capacity: 0-120 kg un-weighing range
- Un-Weighing Harness: Two, Small and Standard size.
- Handrails: For patient's support, Adjustable & Removable.
- Therapist Seat; For Therapist to sit during assistive exercises.
- Frame measures: 42" Long x 33" wide inside to accommodate Treadmill & fitted with four, 6" lockable wheels
- Power Supply: Unit Operates on 220V AC, with battery back-up system.
- Note: Assembled working size of unit; Height 92" x Width 39" x Length 43" approx.
Versatile Rehabilitation SolutionThe IMI 3204 Un Weighing Mobility Trainer accommodates a broad range of users and treatment requirements. Its adjustable electric mechanisms allow targeted therapy for people with different mobility challenges, making it suitable for home, clinical, and rehabilitation center environments.
Reliable and Safe ConstructionCrafted from strong steel, the IMI 3204 provides a stable and secure structure for all users. The recyclable materials and portable design demonstrate a commitment to safety and environmental responsibility, ensuring long-term usability and easy relocation.
FAQ's of IMI 3204 Un Weighing Mobility Trainer:
Q: How do I use the IMI 3204 Un Weighing Mobility Trainer for rehabilitation exercises?
A: Begin by consulting with a healthcare or rehabilitation professional to determine a suitable exercise regime. Once set up, adjust the device according to the target body part-shoulder, joints, cervical, back, muscles, or nerves-and activate via the electric power source. The trainer's mechanisms will assist movements, reducing strain and fostering recovery.
Q: What benefits can users expect from the IMI 3204 Mobility Trainer?
A: Users may experience improved range of motion, enhanced muscle strength, reduced pain, and accelerated recovery post-injury or surgery. The device aids rehabilitation for all age groups, promoting safe and gradual mobility restoration.
Q: When is the ideal time to use the IMI 3204 Trainer during recovery?
A: It's recommended to use the trainer during post-operative periods, post-injury phases, or as part of an ongoing physical therapy regime, as advised by a medical professional. Regular, guided sessions yield the best rehabilitation outcomes.
Q: Where can the IMI 3204 Un Weighing Mobility Trainer be installed?
A: Due to its portable construction, the trainer can be placed in rehabilitation centers, hospitals, homes, or any therapeutic environment with access to an electric power source. Its compact design allows flexible installation without permanent fixtures.
Q: What is the process for setting up the IMI 3204 Mobility Trainer?
A: Unpack the trainer and position it on an even surface. Connect it to a standard electric outlet, verify the settings, and make any adjustments for the target body area. Ensure all safety protocols are followed before beginning any exercise routine.
Q: Is the IMI 3204 Mobility Trainer suitable for all age groups?
A: Yes, the trainer is designed for children, adults, women, and elders. The versatile structure and adjustable features accommodate varying levels of strength and mobility, making it inclusive for diverse rehabilitation needs.
